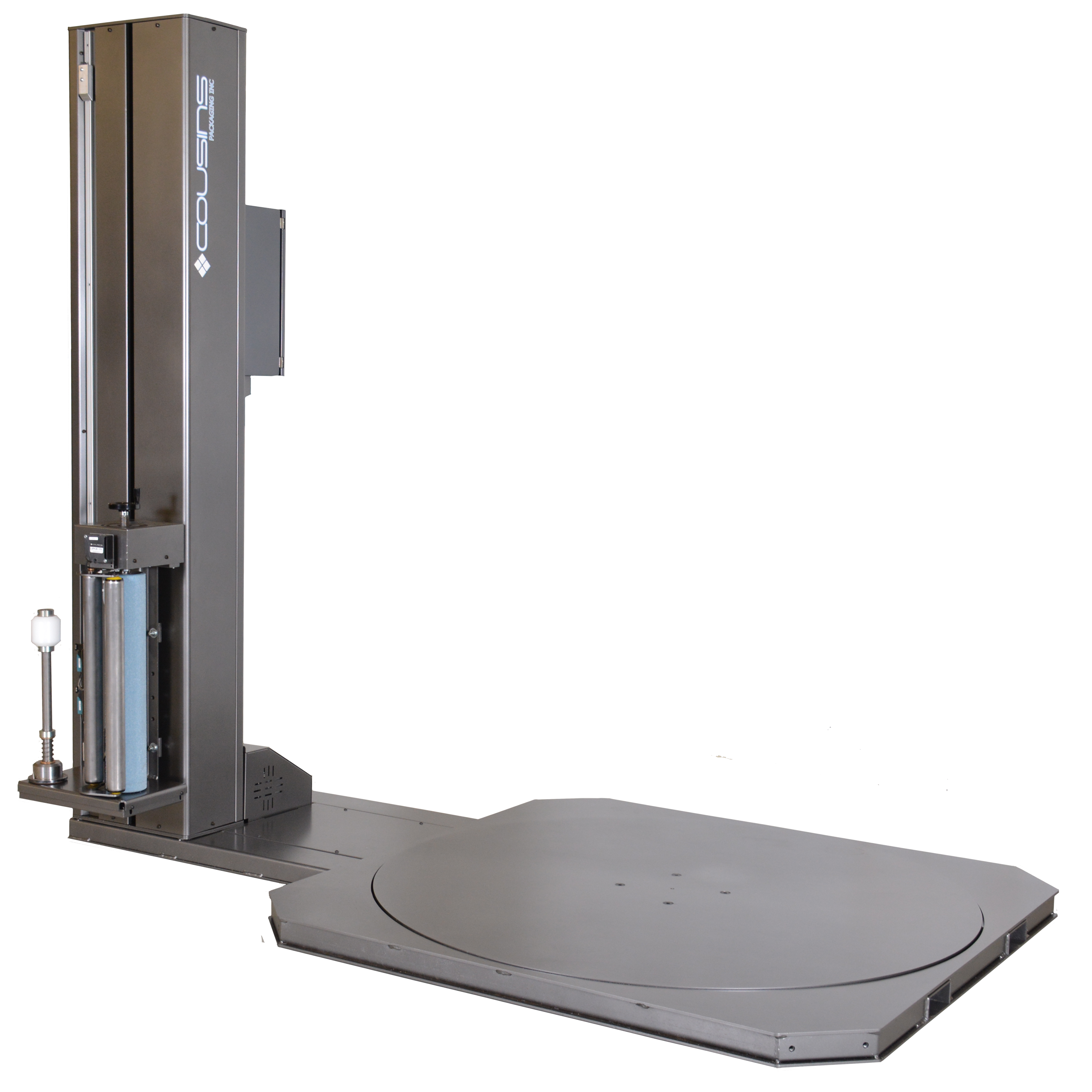

1100-S Low Profile Pallet Wrapper

PRODUCTION SPEED:

• 25 loads per hour throughout

• NOTE: Process rates will vary with load size, number of wraps & forklift load/unload time

LOAD CAPACITY:

• Maximum load weight:

• 4,000 lbs dynamic – 12,000 lbs static

• Maximum load size:

• 50” W x 50” L (71” diagonal) x 82” H

TURNTABLE:

• 57″ diameter laser-cut steel plate with surround deck protection

• Maintenance-free – 42 roller bearing support system

• Turntable height 2.75″ from floor

• ANSI # 50 direct chain drive c/w chain tensioner

• 3-12 RPM rotational speed c/w soft start acceleration

• 1/2 HP AC variable speed motor

• Final revolution deceleration and positive stop alignment

• Rugged surround deck for added protection, 3 sided loading and pit mounting

• Front and back forklift ports for easy movement

• Accu-Count exact turntable positioning system for additional film savings!

• Optional loading ramp 60″ long x 48″ wide complete with 10″ level porch area available

FILM CARRIAGE ELEVATOR:

• 1/2 HP AC variable speed motor

• ANSI #40 direct chain drive c/w shock dampener & Anti-Fall Safety Device

• Maintenance free carriage guidance system

FILM DELIVERY SYSTEM:

• Stretch roller with manually adjusted caliper brake web tensioning system

• Standard 20” roll width, 10” diameter

• Carriage Descent Obstruction Safety Shut-Off Device

• Side mounted film carriage for operator convenience and safety

FILM CAPACITY:

• Accepts all commercial films wound on 3″ diameter cores x 20″ width

• Accommodates damaged cores

ELECTRICAL INPUT:

• 115 Volts 1 Phase 60 Hz 10 Amps

CONTROL:

• Electronic controls with LCD operator interface

• Power Off – On – Reset switch & Power On indicator light

• Single-button Auto Wrap Cycle Start/Pause

• Cycle Pause for applying top sheets

• Reinforce Wrap control for mid-wrapping

• Base or Top Wraps First program

• Up Only or Up/Down wrap program

• Emergency Stop button

• Turntable Jog button

• Film Carriage Lower & Raise buttons

• Separate film carriage raise & lower speed controls

• Operator programmable turntable speed control

• Triple beam auto load height sensing photo-eye, detects dark or shiny loads

• Separate 1 to 12 revolution top & bottom wrap control

• A – B – C wrap program selector with capability to input and store unique wrapping parameters for each program

STRUCTURAL:

• All structural steel construction

• Forklift truck portable base structure design

  • lifting tubes included for front and rear access

• Structural steel tube machine tower with sheet metal covers

• Electro-static powder coated paint finish

FULL AUTOMATION:

• The A-Arm model has a unique method of attaching and cutting the film. Eliminate safety concerns associated with continuous bending over to attach and cut the film. If using forklifts, the operator remains on the lift and cycles the machine using a wireless remote. The labor savings alone can pay for the machine. REQUEST A PROPOSAL FOR OUR A-ARM MODEL (LP-SWA or HP-SWA).

MISCELLANEOUS OPTIONS:

• Starter Spare Parts Kit – recommended minimum quantity of parts to stock for this specific machine

• Ramp for manual pallet jack loading - 48” W x 60” L

• NOTE: Powered pallet jacks may require a Porch Extension Option shown below.

• 24” L x 48” W Porch Extension - for powered pallet jacks

• 40” L x 48” W Porch Extension - for powered pallet jacks

• Tower extension for 110” wrap height capability (standard is 80”)

• NOTE: All machines with tower extensions will be hinged and shipped knocked-down

• 2ft. Base Extension - for maximum 119” diagonal (71” diagonal is standard)

• Dusty Package – Complete sealing of the control panel and use of sealing rings on any conduit entries into the control panel

• Cold Weather Package - down to 33°F

• Freezer Package (32° F to -20° F) – specify minimum temperature

• Beacon Light with Red & Green Lens – indicates run, clear or fault conditions

• 30” film carriage – accommodates standard 20” and 30” wide films

• Netting Option – 20” carriage designed for netting (netting description to accompany the PO)

• Netting Option – 30” carriage designed for netting (netting description to accompany PO)

LOAD CELL & SCALE PACKAGES:

• Built-in Load Cells Scale Package - with GSE250 Digital Weight Indicator

• Note 1: If to be used with pallet jacks the OSCBIRMP Scale Ramp option is required

• Note 2: Machine with base extension option requires a factory quote

• Note 3: Not legal for trade – upgrade available as a factory quote

• Built-In Load Cells Scale Package Ramp – 72” L x 48” W for use with built-in load cells

• Upgrade digital weight indicator from GSE250 model to Matrix 365. The standard model GSE250 indicator is for load weight only and communication features are not available. Matrix 365 indicators have programming features for printers and communication capability..

• 24” L x 48” W scale porch extension for use with built-in load cells

• 40” L x 48” W scale porch extension for use with built-in load cells
