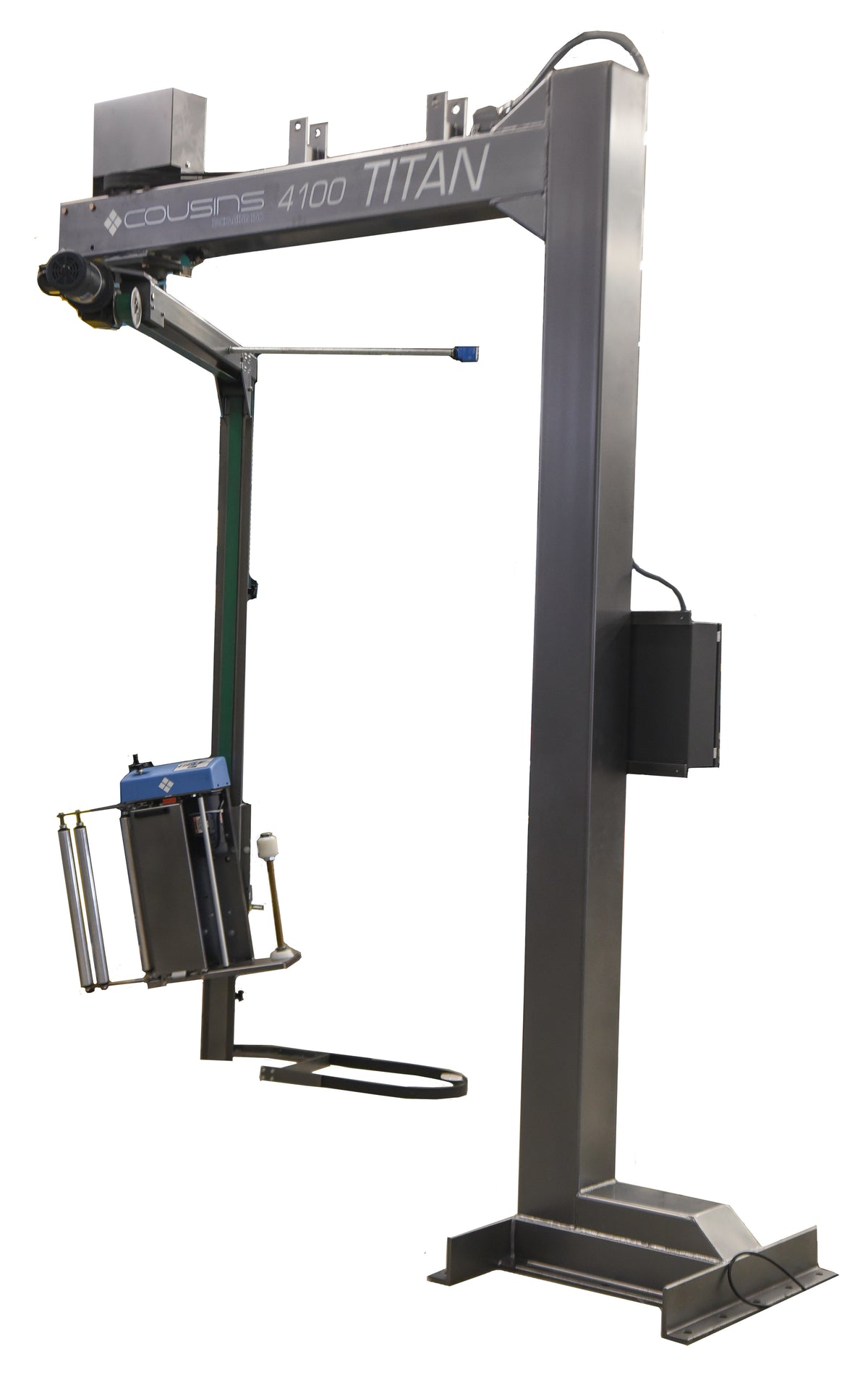

4100T-FSR Free-Standing Rear Mount Semi-Automatic Pallet Wrapper

PRODUCTION SPEED:

• 30 loads per hour throughout

• NOTE: Process rates will vary with load size, number of wraps & forklift load/unload time

LOAD CAPACITY:

• Maximum load weight:

• Unlimited (floor supported)

• Maximum load size:

• 50″ W x 50″ L (71″ max. load diagonal) x 86″ H

ROTARY ARM:

• Double flange bearing support system

• Twin V-belt drive pulleys with belt tensioner

• 1-12 RPM rotational speed c/w soft start acceleration

• Final revolution deceleration and positive stop alignment

• 1/2 HP DC variable speed motor

FILM CARRIAGE ELEVATOR:

• 1/2 HP AC variable speed motor

• Direct flat belt drive system

• Maintenance free 12 point carriage guidance system

FILM DELIVERY SYSTEM:

• Super Rapid Thread II ™ 20″ capacity pre-stretch film carriage

• Special Film Threading Device

• Uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside of the load

• 1/2 HP AC variable speed motor

• Fully electronic dynamic dancer corner compensation

• 33% to 313% fixed stretch capability

• Pre-stretch ratio variable using easy sprocket change

• Rapid Thread ™ Safety Door with auto power cut-off switch

• Superior film-to-roller contact area

• Lifetime warranty on pre-stretch rollers

ELECTRICAL INPUT:

• 115 Volts 1 Phase 60 Hz 15 Amps

CONTROL:

• Simple to operate PANASONIC PLC

• Power Off – On – Reset switch & Power On indicator light

• Single button Auto Wrap Cycle Start/Pause

• Cycle Pause for applying top sheets

• Base or Top Wraps First program

• Reinforce Wrap control for mid-wrapping

• Up Only or Up/Down wrap program

• Emergency Stop button

• Rotary Arm Jog switch

• Film Carriage Lower & Raise buttons

• Film tension (Force-to-Load) control

• Separate film carriage raise & lower speed controls

• Variable rotary arm speed control

• Rotary arm and carriage elevator dynamic braking system

• Triple beam type auto load height sensing photo-eye, detects dark or shiny loads

• Separate 1 to 9 revolution top & bottom wrap control

• NEMA 12 control panel enclosure

• Dust tight slip ring assembly

• Non-proprietary UL/CSA approved components

STRUCTURAL:

• All structural steel construction

• Integral structural steel wall/floor mounting stand

  • lifting tubes included for front and rear access

• Structural steel tube machine tower with sheet metal covers

• Electro-static powder coated paint finish

SAFETY:

• Rotary Arm Obstruction Emergency Safety Stop Sensor

MISCELLANEOUS OPTIONS:

• Starter Spare Parts Kit – recommended minimum quantity of parts to stock for this specific machine

• 48" W x 48" L x 4" H pallet platform - decreases maximum wrap height by 4"

• Side Safety Fences – Set of 2 “L”-shaped sections to suit standard frame size

• Safety Fence Front Sliding Gate c/w interlock switch to suit standard frame size

• Cold Weather Package - down to 34°F

• Freezer Package (34° F to -20° F) – specify minimum temperature

• Freezer Package (34° F to -20° F) – specify minimum temperature

• Broken film/out of film detection with automatic machine reset and fault indication

• 30” film carriage – accommodates standard 20” and 30” wide films

• AC variable speed drives in place of standard DC

• Height extension for 110” tall loads (86” is standard) – other extensions available - contact us for pricing

• Frame extension for maximum 86” diagonal (71” is standard) – other extensions are available – contact us for pricing

LOAD CELL & SCALE PACKAGES:

• SureWeigh platform scale 4’ x 4’ w/GSE250 indicator for stand-alone use (includes 2 x Y189 floor mount brackets)

• SureWeigh platform scale 5’ x 5’ w/GSE250 indicator for stand-alone use (includes 2 x Y189 floor mount brackets)

• Upgrade digital weight indicator from GSE250 model to Matrix 365. The standard model GSE250 indicator is for load weight only and communication features are not available. Matrix 365 indicators have programming features for printers and communication capability.

AIR FLOW & PALLET LOCK:

• film splitter – 20” – manual device to split a 20” roll of film into two (2) 10” wide webs, includes a manually adjustable roping device that “ropes” the film webs to the desired size before being applied to load.

• film splitter – 30” – manual device to split a 30” roll of film into three (3) 10” wide webs, includes a manually adjustable roping device that “ropes” the film webs to the desired size before being applied to load. Includes OP30 30” film carriage option.

• Pallet Lock Roping Device – the most effective method of securing the load to the pallet. Easily programmed using the touchscreen to apply the roped or normal full web film for additional holding force where needed, air flow if required and to prevent film breakage on sharp product or pallet corners. AIR REQUIRED – Includes a filter-regulator unit and loose-shipped quiet air compressor.

• Delete the filter-regulator unit and loose-shipped quiet air compressor included in option OPLRD if customer supplies the necessary pneumatic requirement.
