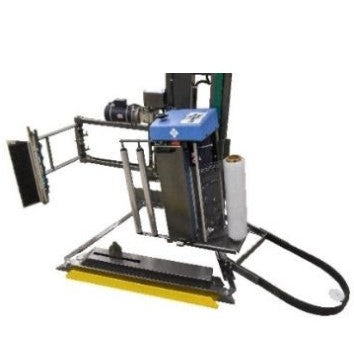

4100-FA ULTRA Rotary Arm Pallet Wrapper

PRODUCTION SPEED:

• 35 loads per hour throughout

• NOTE: Process rates will vary with load size, number of wraps & forklift load/unload time

LOAD CAPACITY:

• Maximum load weight:

• Unlimited (floor supported)

• Maximum load size:

• 50″ W x 50″ L (71″ max. load diagonal) x 86″ H

• Minimum load size:

• 24″ W x 24″ L x 24″ H

ROTARY ARM:

• Double flange bearing support system

• Twin V-belt drive pulleys with belt tensioner

• 1-12 RPM rotational speed c/w soft start acceleration

• Final revolution deceleration and positive stop alignment

• 1/2 HP DC variable speed motor

FILM CARRIAGE ELEVATOR:

• 1/2 HP AC variable speed motor

• Direct flat belt drive system

• Maintenance free 12 point carriage guidance system

PNEUMATIC REQUIREMENT:

• 3 CFM @ 80 PSI clean dry pneumatic supply required Filter/regulator c/w gauge & lock-out valve provided. NOTE: All Electric design is available as an option

ELECTRICAL INPUT:

• 115 Volts 1 Phase 60 Hz 15 Amps

AUTOMATION:

• Ni-chrome impulse hot wire film cut off c/w automatic periodic cleaning cycle

CONTROL:

• PANASONIC PLC with Touchscreen Operator Interface

• Power Off – On – Reset switch & Power On indicator light

• Single button Auto Wrap Cycle Start/Pause

• Cycle Pause for applying top sheets

• Reinforce Wrap control for mid-wrapping

• Emergency Stop button

• Rotary Arm Jog switch

• Film Carriage Lower & Raise buttons

• Film Clamp Open/Close button

• Film tension (Force-to-Load) control

• Separate film carriage raise & lower speed controls

• Variable rotary arm speed control

• Triple beam type auto load height sensing photo-eye, detects dark or shiny loads

• Separate 1 to 12 revolution top & bottom wrap control

• Selectable Reduced Bottom Film Force parameter for wrapping bottom of load

• A – B – C Wrap Program selector with the capability to input and store unique wrapping parameters for each program

• Pendant Start/Stop push-button station for remote operator control – optional lanyard or wireless remote control available

• Stack-light beacon indicates run, clear or fault conditions

• Rotary arm and carriage elevator dynamic braking system

• NEMA 12 control panel enclosure

• Dust tight slip ring assembly

• Non-proprietary UL/CSA approved components

STRUCTURAL:

• All structural steel construction

• Integral structural steel wall/floor mounting stand

• Electro-static powder coated paint finish

SAFETY:

• Rotary Arm Obstruction Emergency Safety Stop Sensor
