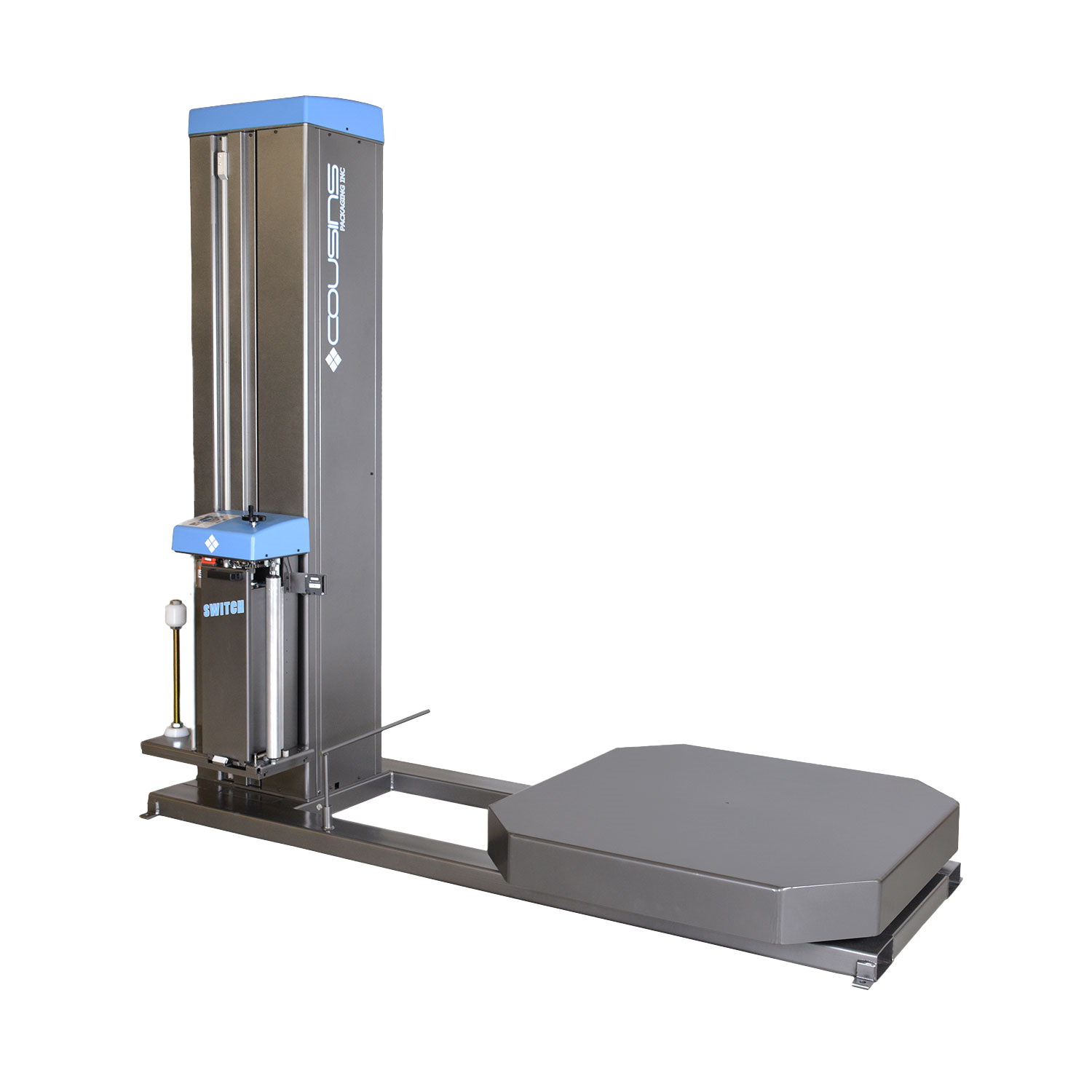

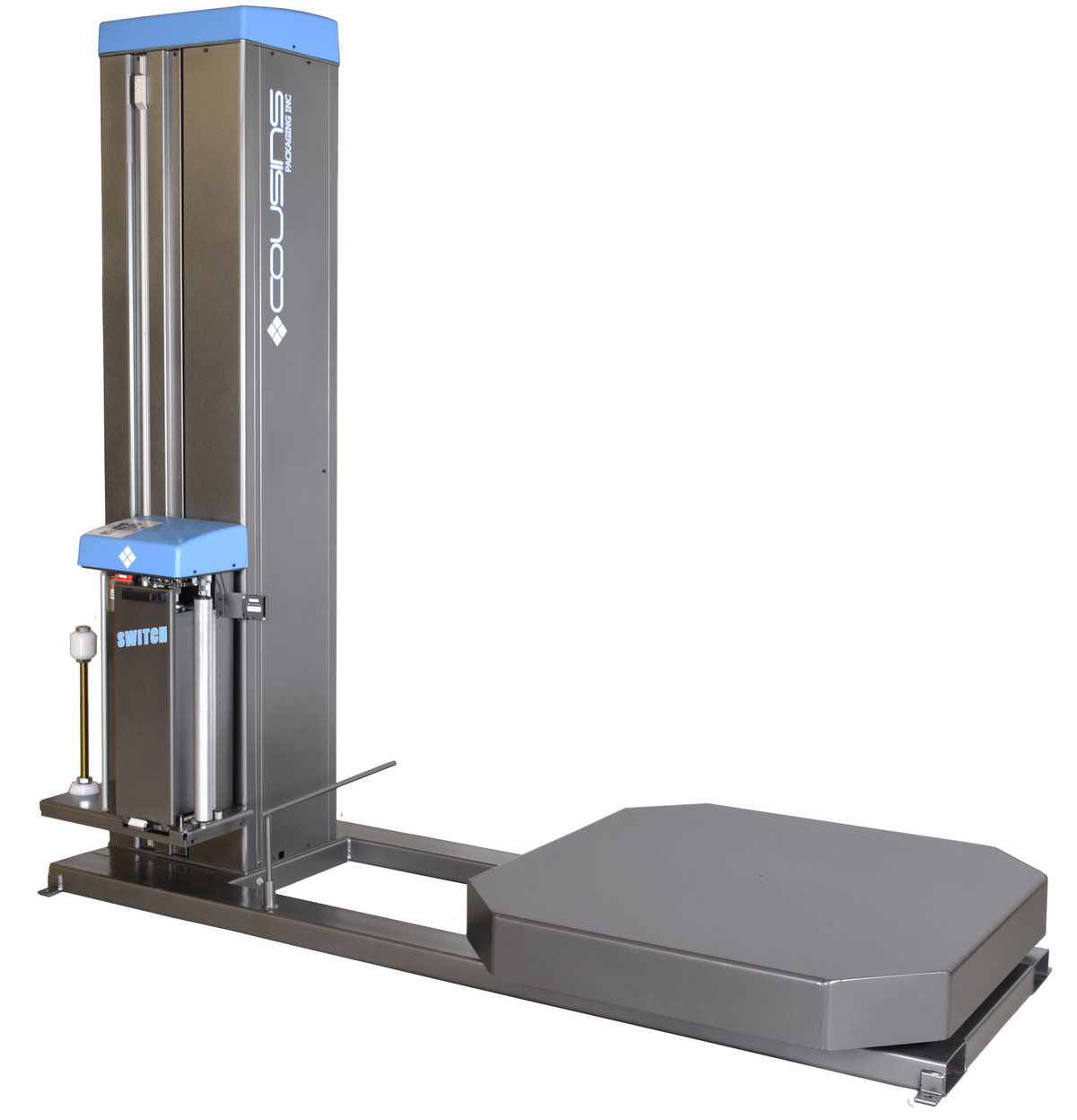

SWITCH High Profile Pallet Wrapper

PRODUCTION SPEED:

• 35 loads per hour throughout (Single Turntable)

• NOTE: Process rates will vary with load size, number of wraps & forklift load/unload time

LOAD CAPACITY:

• Maximum load weight:

• 4,500 lbs dynamic – 10,000 lbs static

• Maximum load size to safely clear the tower:

• 67” x 67” (95”diagonal) x 75” H

TURNTABLE:

• 48″ octagonal 5/16″ thick formed steel plate turntable

• 4 point caster support system

• Turntable height 11″ from floor

• ANSI # 50 direct chain drive c/w chain tensioner

• 3-12 RPM rotational speed c/w soft start acceleration

• 1/2 HP AC variable speed motor

• Final revolution deceleration and positive stop alignment

• Front and back forklift ports for easy movement

• Accu-Count exact turntable positioning system for additional film savings!

FILM CARRIAGE ELEVATOR:

• 1/2 HP AC variable speed motor

• ANSI #40 direct chain drive c/w shock dampener & Anti-Fall Safety Device

FILM DELIVERY SYSTEM:

• Super Rapid Thread II ™ 20″ capacity pre-stretch film carriage

• Special Film Threading Device

• Uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside of the load

• 1/2 HP AC variable speed motor

• Fully electronic dynamic dancer corner compensation

• 33% to 313% fixed stretch capability

• Pre-stretch ratio variable using easy sprocket change

• Carriage Descent Obstruction Safety Shut-Off Device

• Rapid Thread ™ Safety Door with auto power cut-off switch

• Side mounted film carriage for operator convenience and safety

• Superior film-to-roller contact area

• Lifetime warranty on pre-stretch rollers

ELECTRICAL INPUT:

• 115 Volts 1 Phase 60 Hz 15 Amps

CONTROL:

• Electronic controls with LCD operator interface

• Power Off – On – Reset switch & Power On indicator light

• Single-button Auto Wrap Cycle Start/Pause

• Cycle Pause for applying top sheets

• Reinforce Wrap control for mid-wrapping

• Base or Top Wraps First program

• Up Only or Up/Down wrap program

• Emergency Stop button

• Turntable Jog button

• Film Carriage Lower & Raise buttons

• Film tension (Force-to-Load) control

• Separate film carriage raise & lower speed controls

• Operator programmable turntable speed control

• Triple beam auto load height sensing photo-eye, detects dark or shiny loads

• Separate 1 to 12 revolution top & bottom wrap control

• Selectable Reduced Film Tension parameters for wrapping top and/or bottom of load

• A – B – C wrap program selector with capability to input and store unique wrapping parameters for each program

• PASSWORD PROTECTION - The wrap program selection and wrap program setting can be password protected when ordered from the factory (must be specified on the PO)

STRUCTURAL:

• All structural steel construction

• Forklift truck portable base structure design

  • lifting tubes included for front and rear access

• Electro-static powder coated paint finish

AUTOMATION:

• Automatic Film Cutter

• Automatically cuts the film at the end of the cycle eliminating the need for the driver to leave the forklift and to bend over to cut the film. Saves time and reduces the chance of injury.

• Full Automation

• the A-Arm model has a unique method of attaching and cutting the film. Eliminate safety concerns associated with continuous bending over to attach and cut the film. If using forklifts, the operator remains on the lift and cycles the machine using a wireless remote. The labor savings alone can pay for the machine. REQUEST A PROPOSAL FOR OUR A-ARM MODEL (LP-SWA or HP-SWA).

MISCELLANEOUS OPTIONS:

• Starter Spare Parts Kit – recommended minimum quantity of parts to stock for this specific machine

• Tower Extension - for 110” wrap height capability (standard is 80”)

• NOTE: All machines with tower extensions will be hinged and shipped knocked-down.

• 5” tower pedestal for HP models – adds 5” to wrap height (standard is 80”)

• Split Base Frame - to accommodate scale or larger loads

• 1 ft. Base Extension - for max 119” diagonal (95” diagonal is standard)

• Dusty Package – Complete sealing of the control panel and use of sealing rings on any conduit entries into the control panel

• Cold Weather Package - down to 33°F

• Freezer Package (32° F to -20° F) – specify minimum temperature

• Beacon Light with Red & Green Lens – indicates run, clear or fault conditions

• 30” film carriage – accommodates standard 20” and 30” wide films

• Dual Turntables - add a second turntable to increase production.

• NOTE: Includes a Turntable Left-Right momentary selector switch with indicator lights to show the currently selected turntable and magnetic latching relay

LOAD CELL & SCALE PACKAGES:

• Platform Scale Package – SureWeigh Platform Scale with GSE250 Digital Indicator

• NOTE: Machine with base extension option requires a factory quote

• Built-in Load Cells Scale Package - with GSE250 Digital Weight Indicator

• Note: Machine with base extension option requires a factory quote.

• Platform Scale Package - for HP machine with OHPSB Split Base Frame option – SureWeigh 4’ x 4’ Platform Scale with GSE250 Digital Weight Indicator

• Upgrade digital weight indicator from GSE250 model to Matrix 365. The standard model GSE250 indicator is for load weight only and communication features are not available. Matrix 365 indicators have programming features for printers and communication capability.

AIR FLOW & PALLET LOCK:

• AIR FLOW - film splitter – 20” – manual device to split a 20” roll of film into two (2) 10” wide webs, includes a manually adjustable roping device that “ropes” the film webs to the desired size before being applied to load.

• AIR FLOW - film splitter – 30” – manual device to split a 30” roll of film into three (3) 10” wide webs, includes a manually adjustable roping device that “ropes” the film webs to the desired size before being applied to load. Includes OP30 30” film carriage option.

• Pallet Lock Roping Device – the most effective method of securing the load to the pallet. Easily programmed using the standard Microprocessor and touchscreen to apply the roped or normal full web film for additional holding force where needed, air flow if required and to prevent film breakage on sharp product or pallet corners. AIR REQUIRED – includes a quiet, on-board air compressor.

• Pallet Lock Roping Device – Deduction for NO AIR COMPRESSOR or on-board compressor electrical outlet to be supplied.
